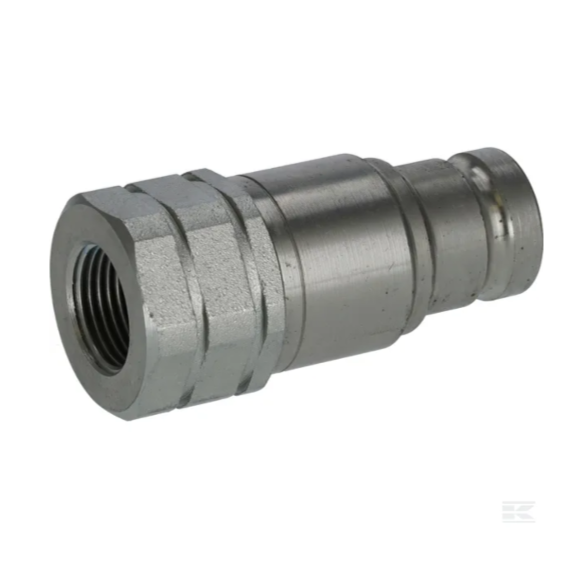

SKVM10C06N Quick release coupling Male 3/8" - 3/8" BSP gopart 53751

Part number
SKVM10C06N
EAN 8719493094770
Unit
Each
Details

One-handed coupling
With special flat valve

Application range

Construction and agricultural machines
Hydraulic tools
Applications in sensitive environments
Mineral oil-based fluids

Properties
Locks on both sides
Benefits

User-friendly
Low leakage
No air pockets during coupling

Shape
Straight - 2 connection sides
Size code
BG 2
Body size
3/8 Inch
Connection no 1 type
Quick coupling
Connection no 1 type - male/female
Male
Connection 2, type
Thread
Connection 2, type - male/female
Female
Connection 2, thread diameter
3/8 Inch
Connection 2, threads per inch
19
Connection 2, thread type
BSP
Connectable under pressure
No
ØDOutside diameter
27 mm
L1Total length
59.5 mm
Material
Steel
Max working temperature
100 °C
Min. working temperature
-20 °C
Seal material

Nitrile rubber [NBR]
Teflon (PTFE)
