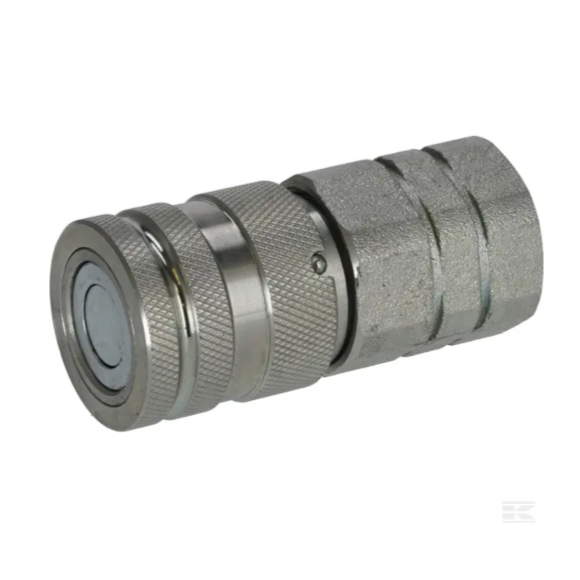

SKVF10C06N Quick release coupling Female 3/8" - 3/8" BSP gopart

Part number
SKVF10C06N
EAN 8719493095081
Unit
Each
Details

One-handed coupling
With special flat valve
Protected against accidental decoupling

Application range

Construction and agricultural machines
Hydraulic tools
Applications in sensitive environments
Mineral oil-based fluids

Properties
Locks on both sides
Benefits

User-friendly
Low leakage
No air pockets during coupling

Shape
Straight - 2 connection sides
Size code
BG 2
Body size
3/8 Inch
Connection no 1 type
Quick coupling
Connection no 1 type - male/female
Female
Connection 2, type
Thread
Connection 2, type - male/female
Female
Connection 2, thread diameter
3/8 Inch
Connection 2, threads per inch
19
Connection 2, thread type
BSP
Connectable under pressure
No
Outside diameter
32 mm
Total length
69 mm
Material
Steel
Working pressure
350 BAR
Max working temperature
100 °C
Min. working temperature
-20 °C
Seal material

Nitrile rubber [NBR]
Teflon (PTFE)
