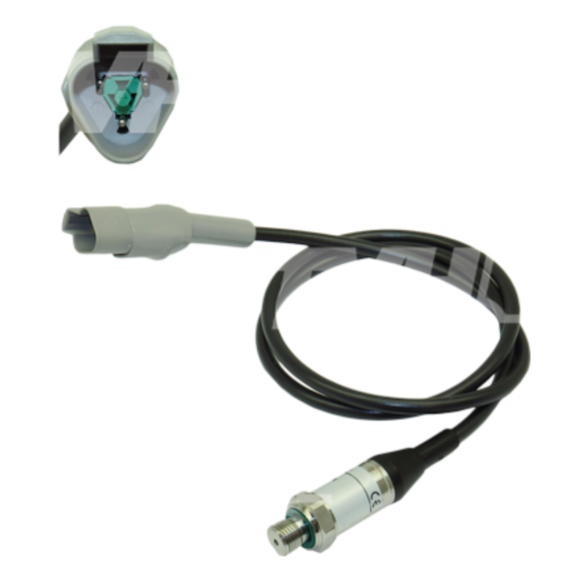

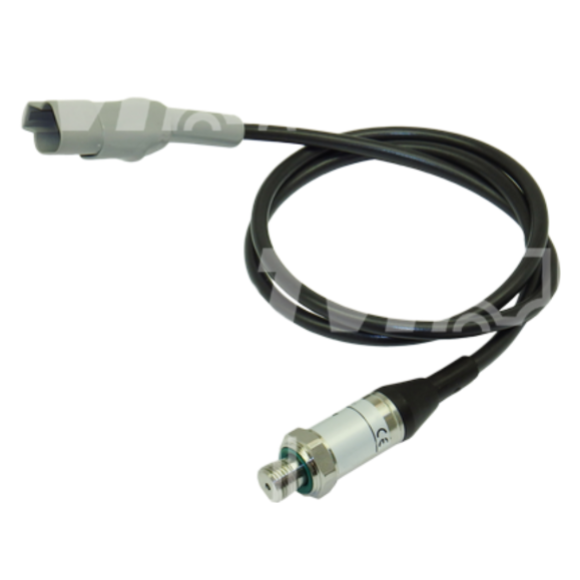

MERLO PRESSURE SENSOR MAIN LIFT RAM 071421

Specifications

Type of pressure switch
sensor
Electronical
YES
Total Length L1 (mm)
92
Largest outer diameter D1 (mm)
20
Diameter D2 (mm)
2.5
Length thread L2 (mm)
8.5
Sort thread
outer thread
Thread size
1/4
Type of thread
BSP
Pitch imperial
19
Right or left handed thread
right-handed
Unit of the thread
imperial
Width across flats metric (mm)
22
Type of connection
wire with connector
Number of wires with connector
1
Maximum pressure BAR (Bar)
400
Maximum pressure PSI (psi)
5801.51
Type contact
multiple,different or with signal
Minimum voltage output (V)
0.5
Maximum voltage output (V)
4.5
Remark
0...400Bar 0,5...4,5V
