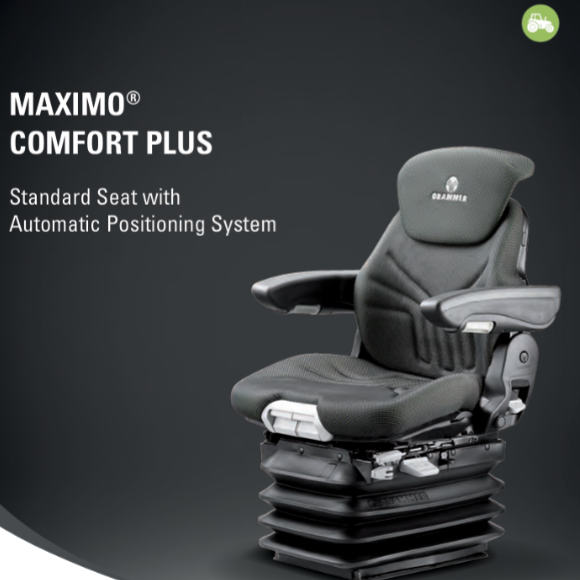

G1288546 Seat Maximo Comfort Plus new design / 0.019.4949.4/10

Part number
G1288546
EAN
Unit
Each
Details

Air-sprung seat
With longitudinal horizontal suspension
Automatic weight adjustment 50–130 kg

Application range
For medium-sized and heavy tractors and construction machines
Properties

Seat cushion width 530 mm
Spring travel: 100 mm
Height adjustment 60 mm, infinitely variable
With mechanical spinal disc support
APS: automatic positioning system
Seat cushion depth and inclination adjustment

Benefits

Extremely comfortable seat
Protects the back from impacts
Effectively prevents spinal disc damage

Long description

Application:
For medium-sized and heavy tractors and construction machines
Benefits:
Extremely comfortable seat
Protects the back from impacts
Effectively prevents spinal disc damage
Consist of:
Seat
Arm rests, height adjustable, inclination adjustable and foldable 65 mm x 270 mm
With integrated backrest extension
Details:
Air-sprung seat
With longitudinal horizontal suspension
Automatic weight adjustment 50–130 kg
Properties:
Seat cushion width 530 mm
Spring travel: 100 mm
Height adjustment 60 mm, infinitely variable
With mechanical spinal disc support
APS: automatic positioning system
Seat cushion depth and inclination adjustme

Suspension type
Pneumatic
Upholstery material
Fabric
Upholstery colour
Black
Total width
530 mm
Consists of

Seat
Arm rests, height adjustable, inclination adjustable and foldable 65 mm x 270 mm
With integrated backrest extension

Armrests included
Yes
Backrest extension included
Yes
Seatbelt included
No
Contact switch included
No
Auto user weight adjustment
Yes
Model
MSG95A/731
Back angle adjustment
35 °
Height adjustment
8 cm
Depth
631 mm
Min. working load
50 kg
Suspension stroke
10 cm
Max. working load
130 kg
Suitable for machine/vehicle model
MSG95A/731

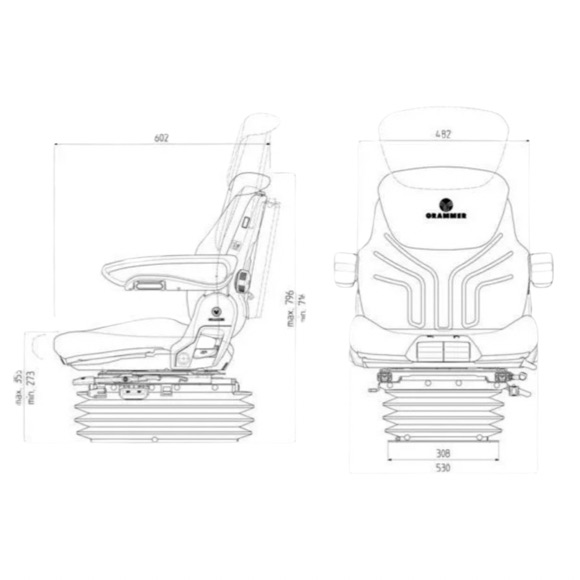

Total height
754 mm
Heating kit included
No
Total length
631 mm
Supply voltage
12 V
