GRAMMER SEAT DS44/1B VARIO

Part number
G2052165
EAN
Unit
Each
Details
Seat with adjustable bracket angles in 10° / 16° / 20° / 26° / 36° / 50°
Pros
Easy to convert from straight foot to angled foot
Product details
Black plastic upholstery
Weight adjustment 50 - 120kg
Spring travel 60mm
Rear suspension
Seat width 545mm
Application range
For universal, affordable use
Properties
Seat cushion width 470mm
Spring travel 90mm
Horizontal adjustment 150mm
Weight adjustment 50 - 120 kg
Weight 22 kg
Benefits
Simple conversion from straight to inclined console
Long description
Application range:
For universal, affordable use
Benefits:
Simple conversion from straight to inclined console
Details:
Seat with adjustable bracket angles in 10° / 16° / 20° / 26° / 36° / 50°
Properties:
Seat cushion width 470 mm
Spring travel 90mm
Horizontal adjustment 150 mm
Weight adjustment 50 - 120 kg
Weight 22 kg
Suspension type
Mechanical
Upholstery material
PVC
Upholstery colour
Black

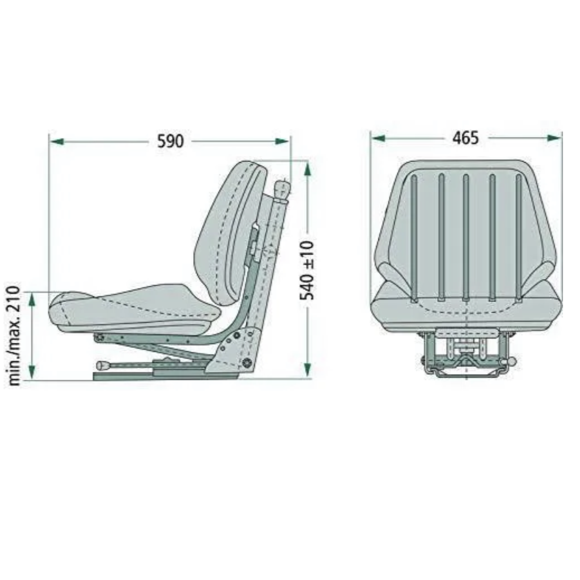

Total width
465 mm
Armrests included
No
Backrest extension included
No
Seatbelt included
No
Contact switch included
No
Auto user weight adjustment
No
Model
DS44/1B
Height adjustment
6 cm
Depth
590 mm
Min. working load
50 kg
Suspension stroke
6 cm
Max. working load
120 kg
Suitable for machine/vehicle model
DS 44 / 1B
Total height
540 mm
Heating kit included
No
Total length
590 mm
