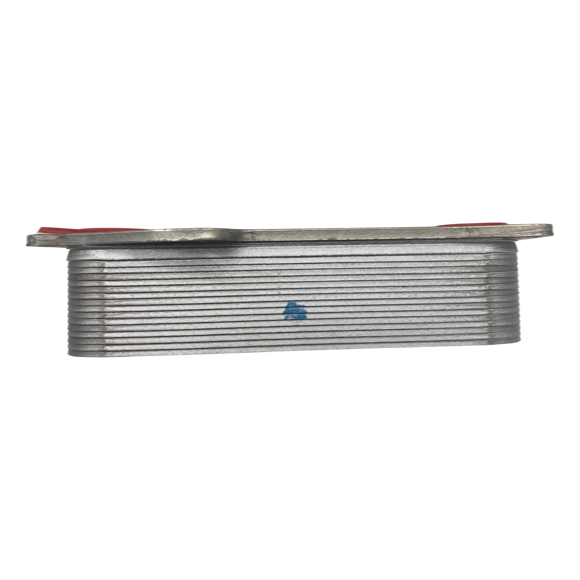

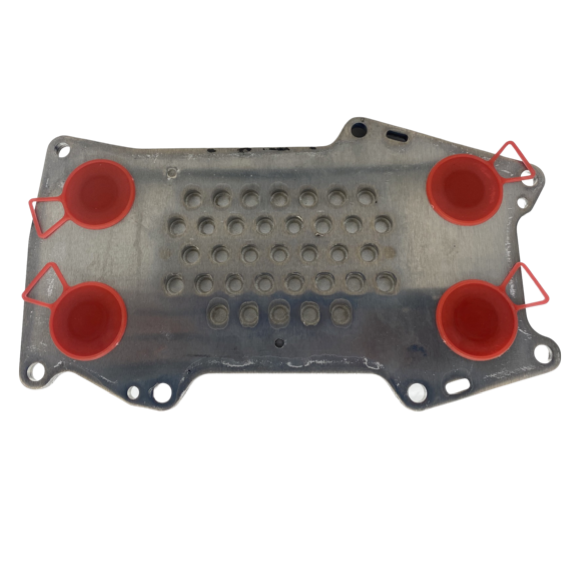

DEUTZ ENGINE OIL COOLER NON ORIGINAL 55MM DEPTH 04912101

Technical Details
Width (mm)
160
Length (mm)
280
thickness (mm)

Total Length L2: 280mm

Total width W1: 160mm

Total height H1: 55mm

Length oil cooler part L2: 250mm

Width oil cooler part W2: 120mm

Height oil cooler part H2: 34mm

Diameter connection holes D1:21,5mm x 4

Diameter mounting holes D2: Ø 8,5mm x 7

Biggest centre distance between the connection holes C1: 200mm

Smallest centre distance between the connection holes C2: 70mm
