LA20009 Warning light LED, 6W, 12-24V, amber, bolt on, 106x34x30mm, 3 LED's, Kramp

Part number
LA20009
EAN 8719607109925
Unit
Each
Properties

Operating voltage: 12–24 VDC
Average energy consumption: 1.2 A at 12 VDC/0.6 A at 24 VDC

Technical info

ECE R65 Approved Class I (double flash)
EMC approval to R10.04

Nominal voltage

12 V
24 V

Nominal voltage range
12-24 V
Bulbs technology
LED
Shape
Rectangular
Function
Flash
Power
6 W

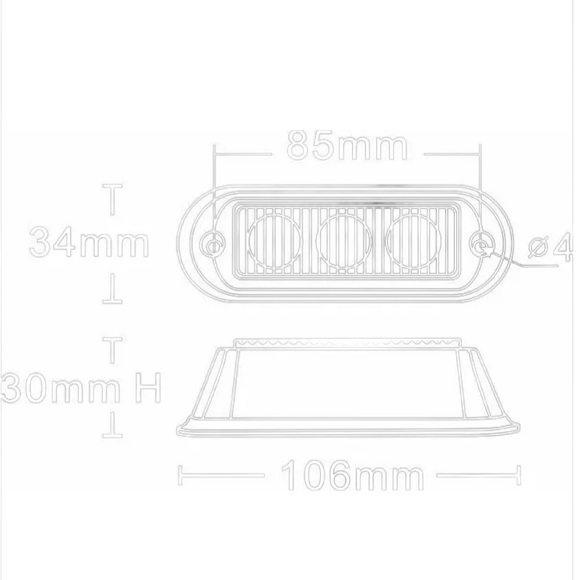

Width
106 mm
Height
34 mm
Length (depth)
30 mm
Mounting position

Front
Rear

Mounting type
Bolt on
Light colour
Orange
Application

Tractor
Trailer
Truck
Car
Construction vehicle
Road services

Suitable for machine/vehicle brand
Universal
Plug type
Free conductor end
ECE standard

R10
R65

Authorisation number
UKCA
Number of LEDs
3
Mounting holes distance
85 mm
Mounting holes diameter
4 mm
Insulation class
65
