LA80045 Headlight LED, round, 10-30V, bolt on, Ø 150mm, Kramp

Part number
LA80045
EAN 8719493115758
Unit
Each
Product details

LED lamps are exposed to dirt, fertilisers, road salt, acids and more.
For best performance and long life, the lens and cooling fins should be cleaned regularly
Meets latest LED technology
Minimum 30.000 hrs of lifetime
Retail friendly packaging
1 year warranty

Application

Universal
Tractor
Truck
Construction vehicle

Bulbs technology
LED
Cable length
1 m
CISPR standard
25 Class 3
Colour temperature
6500 K

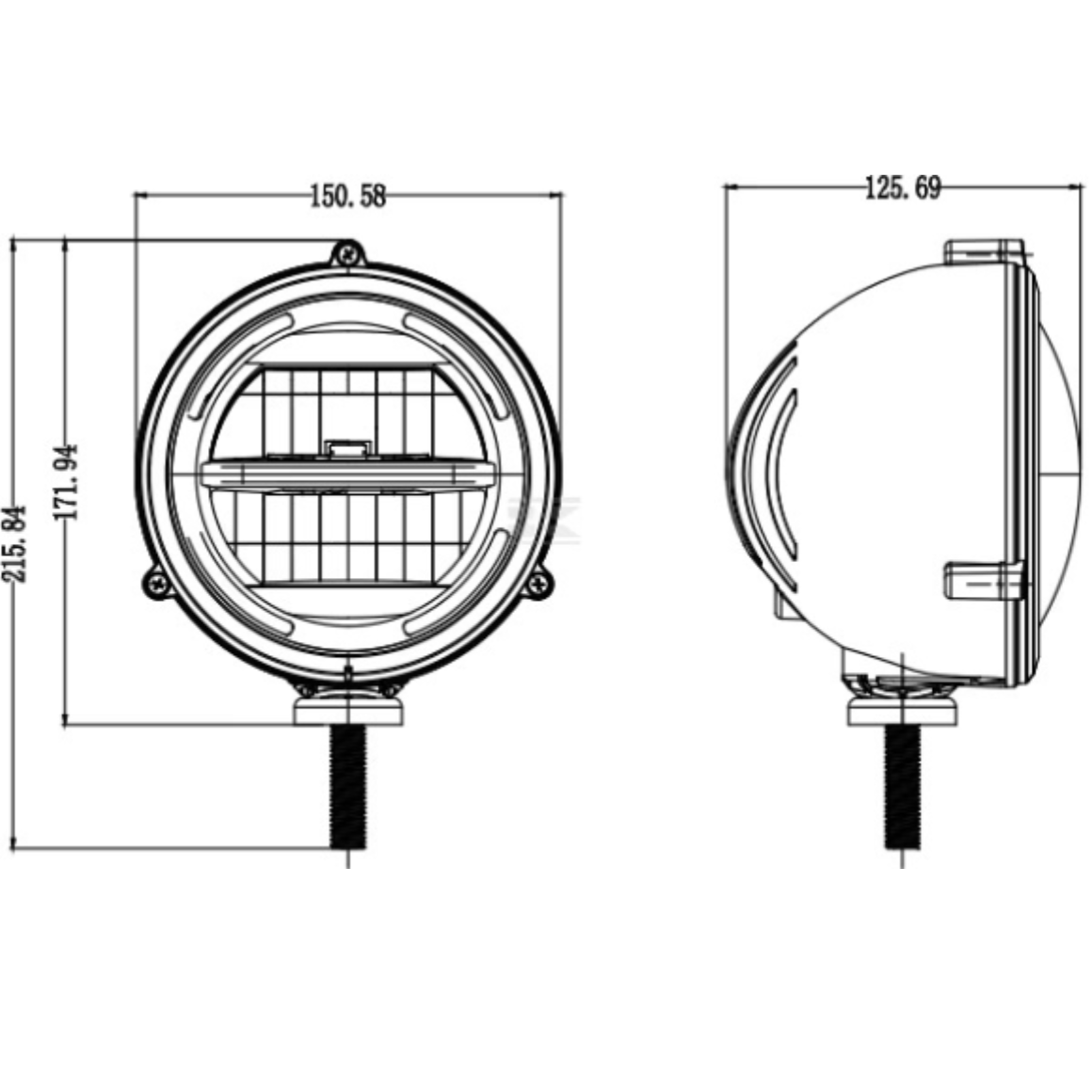

Diameter
150.6 mm
ECE standard

R10
R112
R7

Function

High beam
Low beam
Daytime running light
Vehicle Headlights

Height
171.9 mm
Insulation class
67
Length (depth)
125.7 mm
Light colour
White
Light type
Dual beam
Max working temperature
50 °C
Min working temperature
-40 °C
Mounting position

Front
Left
Right

Mounting type
Bolt on
Nominal voltage

12 V
24 V

Nominal voltage range
12-24 V
Number of LEDs
2
Plug type
AMP
Power

22 W
21 W

Shape
Round
Suitable for machine/vehicle brand
Deutz-Fahr
Weight
1 kg
Width
150 mm
